TDA2030 BTL Amplifier Circuit
BTL amplifier circuit using IC TDA2030 x 2. With a 100W power output,
the amplifier circuit is quite easy to make and do not cost that much.

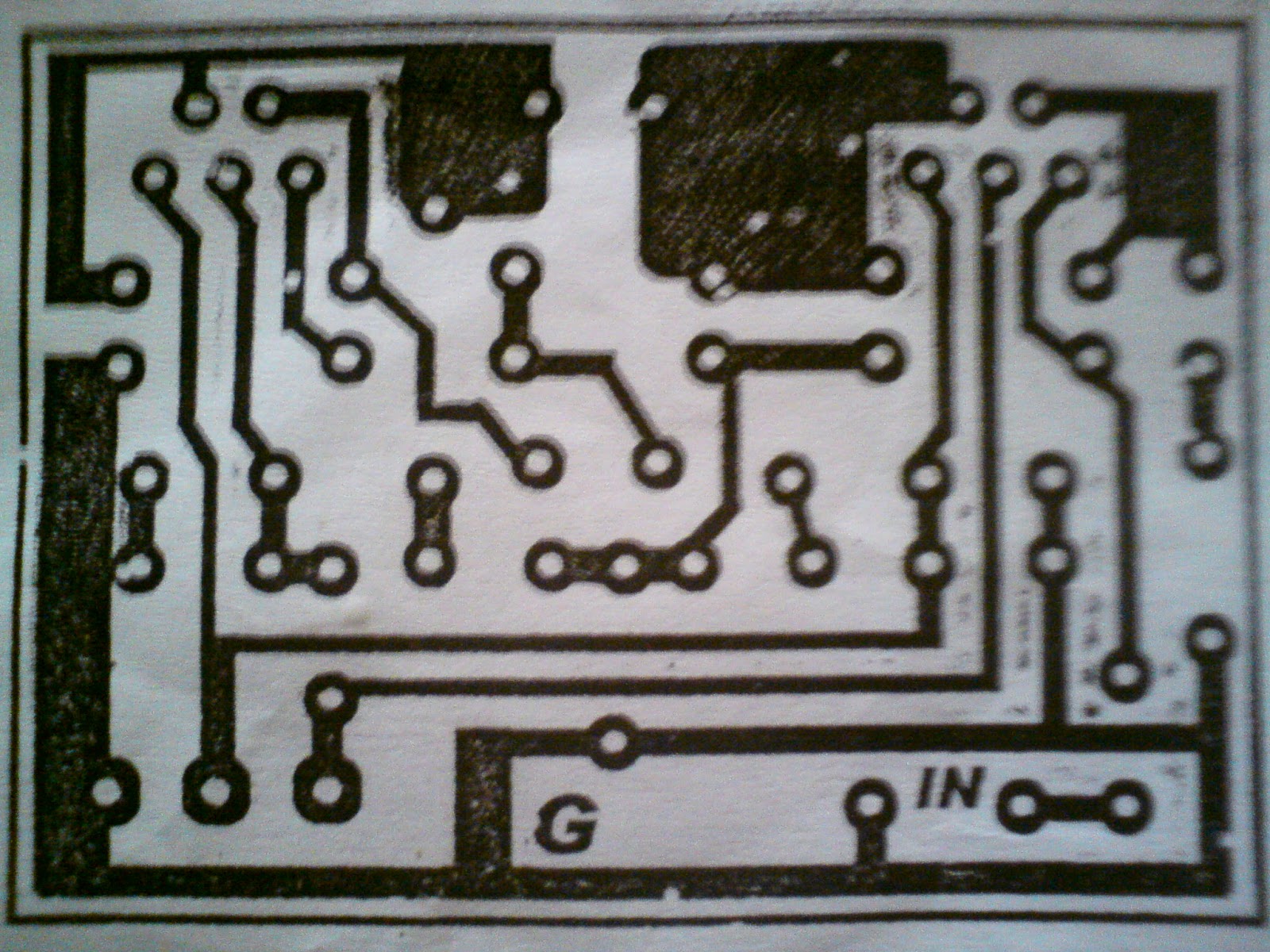

The sound is pretty good issued. And beriklut below is an example of PCB
lay-out design for BTL amplifier circuit TDA2030.
 |
| Click to view larger. |
